Resource
| Id | TF_ChIP-seq/ENCSR000ANO |
|---|---|
| Type | position_score |
| Version | 0 |
| Summary | TF_ChIP-seq ENCSR000ANO [biosample_summary="Homo sapiens fibroblast of lung female child (11 years) and male adult (45 years)" and target="CTCF"] |
| Description |
status: released biological_replicates: Rep 1, Rep 2 summary: female child (11 years) male adult (45 years) output_type: optimal IDR thresholded peaks audit_error: Processed alignments file {ENCFF345IDF|/files/ENCFF345IDF/} processed by ChIP-seq ENCODE3 hg19 pipeline has 3187675 usable fragments. The minimum ENCODE standard for each replicate in a ChIP-seq experiment targeting CTCF-human and investigated as a transcription factor is 10 million usable fragments. The recommended value is > 20 million, but > 10 million is acceptable. (See {ENCODE ChIP-seq data standards|/data-standards/chip-seq/} ) audit_internal_action: Archived analysis {ENCAN596BCX|/analyses/ENCAN596BCX/} has in progress subobject quality standard {encode3-tf-chip|/quality-standards/encode3-tf-chip/} audit_not_compliant: NRF (Non Redundant Fraction) is equal to the result of the division of the number of reads after duplicates removal by the total number of reads. An NRF value in the range 0 - 0.5 is poor complexity, 0.5 - 0.8 is moderate complexity, and > 0.8 high complexity. NRF value > 0.8 is recommended, but > 0.5 is acceptable. ENCODE processed alignments file {ENCFF345IDF|/files/ENCFF345IDF/} processed by ChIP-seq ENCODE3 hg19 pipeline was generated from a library with NRF value of 0.48. audit_not_compliant: PBC1 (PCR Bottlenecking Coefficient 1, M1/M_distinct) is the ratio of the number of genomic locations where exactly one read maps uniquely (M1) to the number of genomic locations where some reads map (M_distinct). A PBC1 value in the range 0 - 0.5 is severe bottlenecking, 0.5 - 0.8 is moderate bottlenecking, 0.8 - 0.9 is mild bottlenecking, and > 0.9 is no bottlenecking. PBC1 value > 0.9 is recommended, but > 0.8 is acceptable. ENCODE processed alignments file {ENCFF345IDF|/files/ENCFF345IDF/} processed by ChIP-seq ENCODE3 hg19 pipeline was generated from a library with PBC1 value of 0.48. audit_warning: Processed alignments file {ENCFF211UGH|/files/ENCFF211UGH/} processed by ChIP-seq ENCODE3 hg19 pipeline has 10594096 usable fragments. The minimum ENCODE standard for each replicate in a ChIP-seq experiment targeting CTCF-human and investigated as a transcription factor is 10 million usable fragments. The recommended value is > 20 million, but > 10 million is acceptable. (See {ENCODE ChIP-seq data standards|/data-standards/chip-seq/} ) audit_warning: PBC1 (PCR Bottlenecking Coefficient 1, M1/M_distinct) is the ratio of the number of genomic locations where exactly one read maps uniquely (M1) to the number of genomic locations where some reads map (M_distinct). A PBC1 value in the range 0 - 0.5 is severe bottlenecking, 0.5 - 0.8 is moderate bottlenecking, 0.8 - 0.9 is mild bottlenecking, and > 0.9 is no bottlenecking. PBC1 value > 0.9 is recommended, but > 0.8 is acceptable. ENCODE processed alignments file {ENCFF211UGH|/files/ENCFF211UGH/} processed by ChIP-seq ENCODE3 hg19 pipeline was generated from a library with PBC1 value of 0.89. audit_warning: PBC2 (PCR Bottlenecking Coefficient 2, M1/M2) is the ratio of the number of genomic locations where exactly one read maps uniquely (M1) to the number of genomic locations where two reads map uniquely (M2). A PBC2 value in the range 0 - 1 is severe bottlenecking, 1 - 3 is moderate bottlenecking, 3 - 10 is mild bottlenecking, > 10 is no bottlenecking. PBC2 value > 10 is recommended, but > 3 is acceptable. ENCODE processed alignments file {ENCFF211UGH|/files/ENCFF211UGH/} processed by ChIP-seq ENCODE3 hg19 pipeline was generated from a library with PBC2 value of 9.48. audit_warning: PBC2 (PCR Bottlenecking Coefficient 2, M1/M2) is the ratio of the number of genomic locations where exactly one read maps uniquely (M1) to the number of genomic locations where two reads map uniquely (M2). A PBC2 value in the range 0 - 1 is severe bottlenecking, 1 - 3 is moderate bottlenecking, 3 - 10 is mild bottlenecking, > 10 is no bottlenecking. PBC2 value > 10 is recommended, but > 3 is acceptable. ENCODE processed alignments file {ENCFF345IDF|/files/ENCFF345IDF/} processed by ChIP-seq ENCODE3 hg19 pipeline was generated from a library with PBC2 value of 2.04. audit_warning: Replicate concordance in ChIP-seq experiments is measured by calculating IDR values (Irreproducible Discovery Rate). ENCODE processed IDR thresholded peaks files {ENCFF745NVR|/files/ENCFF745NVR/}, {ENCFF109CLL|/files/ENCFF109CLL/} processed by ChIP-seq ENCODE3 hg19 pipeline have a rescue ratio of 1.22 and a self consistency ratio of 2.10. According to ENCODE standards, having both rescue ratio and self consistency ratio values < 2 is recommended, but having only one of the ratio values < 2 is acceptable. audit_warning: Replicate concordance in ChIP-seq experiments is measured by calculating IDR values (Irreproducible Discovery Rate). ENCODE processed IDR thresholded peaks files {ENCFF734DZF|/files/ENCFF734DZF/}, {ENCFF368AKR|/files/ENCFF368AKR/} processed by ChIP-seq ENCODE3 hg19 pipeline have a rescue ratio of 1.22 and a self consistency ratio of 2.10. According to ENCODE standards, having both rescue ratio and self consistency ratio values < 2 is recommended, but having only one of the ratio values < 2 is acceptable. |
| Labels |
|
Scores (1)

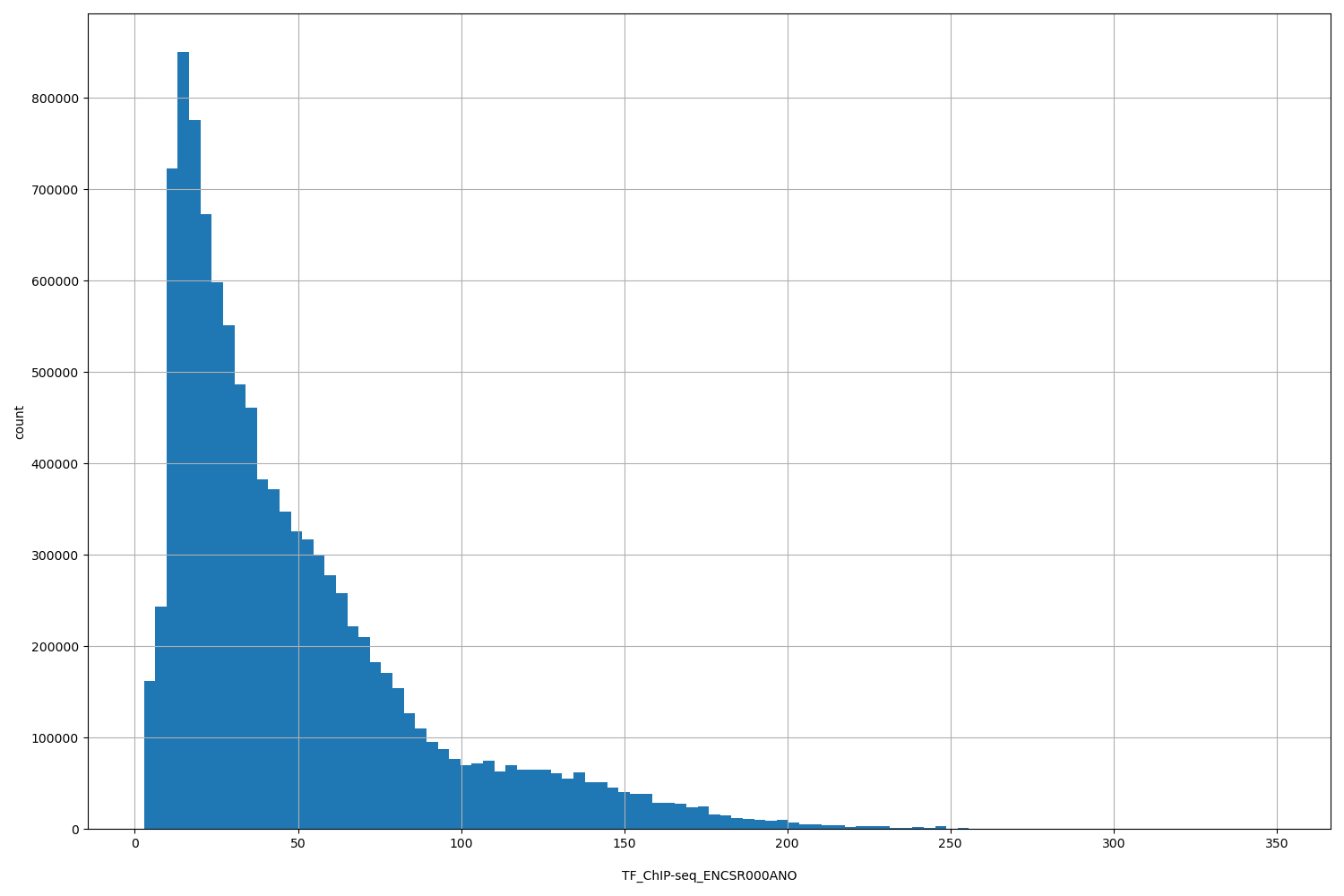

| ID | Type | Default annotation | Description | Histogram | Range | Summary |
|---|---|---|---|---|---|---|
| TF_ChIP-seq_ENCSR000ANO | float |
TF_ChIP-seq_ENCSR000ANO |
TF_ChIP-seq ENCSR000ANO [biosample_summary="Homo sapiens fibroblast of lung female child (11 years) and male adult (45 years)" and target="CTCF"]
|
 |
[2.78, 349] |
|
n counts base pairs; sd is the population standard deviation.
Coverage
| Chromosome | Covered positions | Covered % | Segments |
|---|---|---|---|
| all chromosomes | 10809211 | 0.34% | 40622 |
| chr1 | 1017669 | 0.41% | 3914 |
| chr2 | 835021 | 0.34% | 3102 |
| chr3 | 686374 | 0.35% | 2527 |
| chr4 | 494052 | 0.26% | 1769 |
| chr5 | 587683 | 0.32% | 2179 |
| chr6 | 613029 | 0.36% | 2297 |
| chr7 | 540201 | 0.34% | 1991 |
| chr8 | 477735 | 0.33% | 1767 |
| chr9 | 450386 | 0.33% | 1706 |
| chr10 | 495731 | 0.37% | 1867 |
| chr11 | 607418 | 0.45% | 2324 |
| chr12 | 553233 | 0.42% | 2084 |
| chr13 | 251672 | 0.22% | 918 |
| chr14 | 348259 | 0.33% | 1293 |
| chr15 | 352559 | 0.35% | 1354 |
| chr16 | 373055 | 0.41% | 1441 |
| chr17 | 499784 | 0.60% | 1969 |
| chr18 | 217250 | 0.27% | 801 |
| chr19 | 413352 | 0.71% | 1625 |
| chr20 | 301098 | 0.47% | 1178 |
| chr21 | 117828 | 0.25% | 439 |
| chr22 | 227587 | 0.45% | 889 |
| chrX | 347287 | 0.22% | 1185 |
| chrY | 948 | <0.01% | 3 |
| 3342 contigs with no values (129077085 bp) | 0 | 0.00% | 0 |
Segment lengths
| segments | min | max | mean | median | |
|---|---|---|---|---|---|
| segments | 40622 | 1 | 448 | 266.09 | 316 |
Files
| Filename | Size | md5 |
|---|---|---|
| ENCFF734DZF.bed.gz | 617.2 KB | 19b0f552c264539be3097aab1fcfe955 |
| ENCFF734DZF.tabix.bed.gz | 473.35 KB | f1ee07543ce7f2932d8bfcc05fb21040 |
| ENCFF734DZF.tabix.bed.gz.tbi | 251.49 KB | a91ed605a9aee28d868397baccd640d7 |
| genomic_resource.yaml | 6.69 KB | 5856311d488a316d125baecea83b8298 |
| statistics/ |
